PFS2

PFS2

Finish Codeft
Zinc Blue ZU
Zinc Black ZB
Zinc Yellow ZC
Zinc Clear ZI
Black Anodize BL
Natural Anodize NA
Gold Anodize GD
Copper Red RU
Copper Yellow YU
Nickel Over Copper CN
Tin Matt DT
Flash Black Painting coating PC
Sn/Pb plating TP
Sandblast and Anodize SA
Nickel Flash NI
Nickel Electroless EN
Chrome Flash CR
Tin Flash ET
Passivation PS
Gold Plating AU
Silver plating AG
Titanium plating TI
Cadmium plating CD
Zinc-Iron Alloy ZF
Chromate CH
Plain X
Electro painting EF
Contact Us Inquiry DownLoad
DETAILS
APPLIACTION

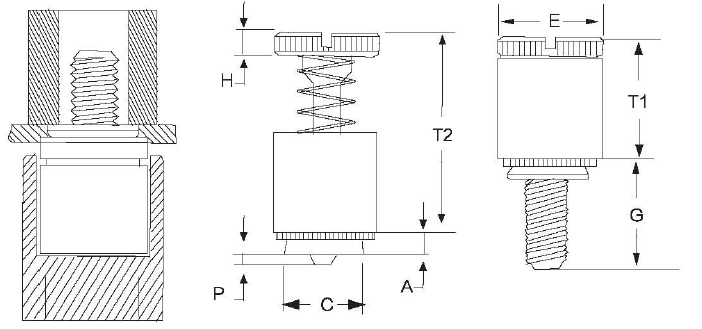

All dimensions are in inches (Size Unit: inch)



Thread Size

Type

Thread Code

Shank Code

A
Max.

Min.Sheet Thickness

Hole Size In Sheet
+.003

C
Max.

E
±.010

G
±.016

P
±.025

T1
Max.

T2
Nom.

H
±.005

Min.Dist Hole C/L To Edge

Steel

Stainless Steel

.112-40(#4-40)

PFS2

PFC2

440

40

.060

.060

.265

.264

.312

.250

.000

.360

.540

.072

.250

62

.375

.125

.138-32(#6-32)

PFS2

PFC2

632

40

.060

.060

.281

.280

.344

.250

.000

.360

.540

.072

.280

62

.375

.125

84

.500

.250

.164-32(#8-32)

PFS2

PFC2

832

50

.060

.060

.312

.311

.375

.312

.000

.450

.690

.082

.310

72

.437

.125

94

.562

.250

.190-32(#10-32)

PFS2

PFC2

032

50

.060

.060

.344

.343

.406

.312

.000

.450

.690

.082

.340

72

.437

.125

94

.562

.250

.250-20(1/4-20)

PFS2

PFC2

0420

60

.060

.060

.413

.412

.468

.375

.000

.580

.880

.097

.380

82

.500

.125

04

.625

.250
All dimensions are in millimeters (Size Unit: mm)

Thread Size

Type

Thread Code

Shank Code

A
Max.

Min.Sheet Thickness

Hole Size In Sheet
+0.08

C
Max.

E
±0.25

G
±0.4

P
±0.64

T1
Max.

T2
Nom.

H
±0.13

Min.Dist Hole C/L To Edge

Steel

Stainless Steel

M3X0.5

PFS2

PFC2

M3

40

1.53

1.53

6.73

6.71

7.92

6.4

0

9.14

13.72

1.83

6.35

62

9.5

3.2

M4X0.7

PFS2

PFC2

M4

50

1.53

1.53

7.92

7.9

9.53

7.9

0

11.43

17.53

2.08

7.87

72

11.1

3.2

94

14.3

6.4

M5X0.8

PFS2

PFC2

M5

50

1.53

1.53

8.74

8.72

10.31

7.9

0

11.47

17.53

2.08

8.63

72

11.1

3.2

94

14.3

6.4

M6X1.0

PFS2

PFC2

M6

60

1.53

1.53

10.49

10.47

11.89

9.5

0

14.73

22.35

2.46

9.05

82

12.7

3.2

04

15.9

6.4
