ALUMINUM/STEEL DOME HEAD BLIND RIVETS

MATERIAL

Body:Aluminum

Mandrel:Steel

FINISH

Body:Polished

Mandrel:Zinc Plated

DETAILS

APPLIACTION

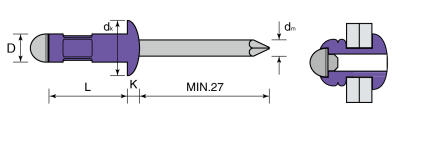

D		L		dk	k	dm
RIVET SIZE	PART NUMBER	RIVET LENGTH	GRIP RANGE	HEAD DIA	HEAD HEIGHT	MANDREL DIA	HOLE SIZE (DRILL)	Shear (N)	Tensile (N)
	PART NUMBER	RIVET LENGTH	GRIP RANGE	HEAD DIA	HEAD HEIGHT	MANDREL DIA	HOLE SIZE (DRILL)	Shear (N)	Tensile (N)
		[+1/-0]	MIN-MAX		MAX.	MAX.	Ф	MIN.	MIN.
3.2 +0.08 -0.15	ASNG3206	6.0	1.0-3.5	5.8-6.7	1.3	2.00	3.3-3.4	650	850
	ASNG3208	8.0	1.5-5.0
	ASNG3210	10.0	2.5-7.0
	ASNG3212	12.0	4.5-9.0
	ASNG3214	14.0	6.5-10.5
	ASNG3216	16.0	9.0-12.5
4.0 +0.08 -0.15	ASNG4006	6.0	1.0-3.0	6.9-8.4	1.7	2.50	4.1-4.2	950	1500
	ASNG4008	8.0	1.5-5.0
	ASNG4010	10.0	2.0-6.5
	ASNG4012	12.0	3.5-8.5
	ASNG4014	14.0	5.5-10.5
	ASNG4016	16.0	6.0-12.5
	ASNG4018	18.0	9.5-14.5
	ASNG4020	20.0	11.5-16.5
4.8 +0.08 -0.15	ASNG4810	10.0	1.5-6.0	8.3-10.1	2.0	3.00	4.9-5.0	1320	2000
	ASNG4812	12.0	2.0-8.0
	ASNG4814	14.0	3.5-9.5
	ASNG4816	16.0	6.0-11.5
	ASNG4818	18.0	8.0-13.5
	ASNG4820	20.0	10.0-15.5
	ASNG4822	22.0	12.0-17.5
	ASNG4824	24.0	12.0-19.0
	ASNG4827	27.0	17.0-22.0
	ASNG4830	30.0	20.0-25.0
