Home / Products / Blind Rivet / Closed End Type Series

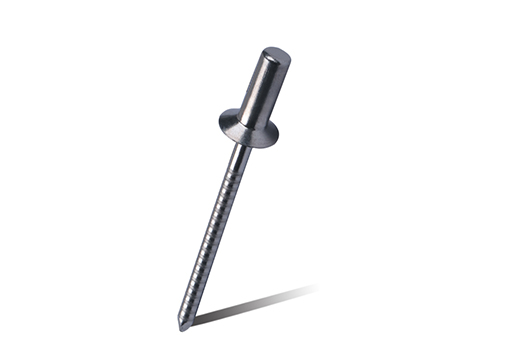

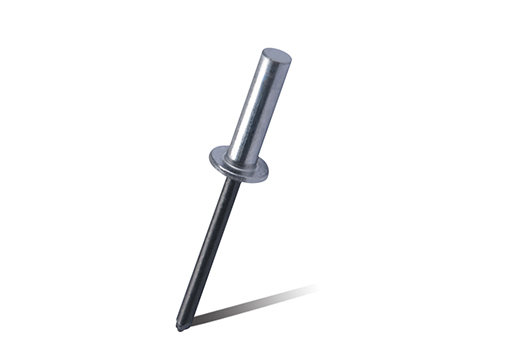

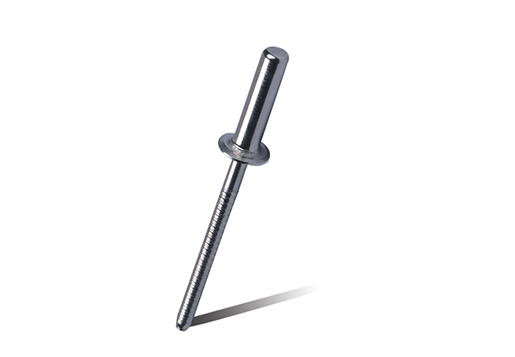

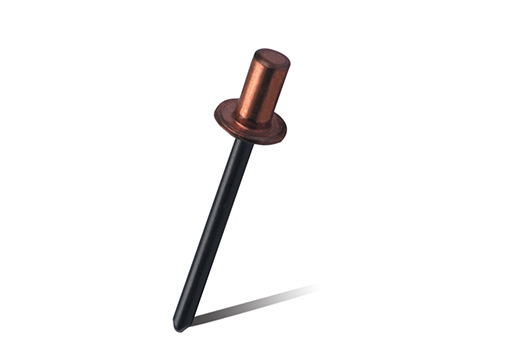

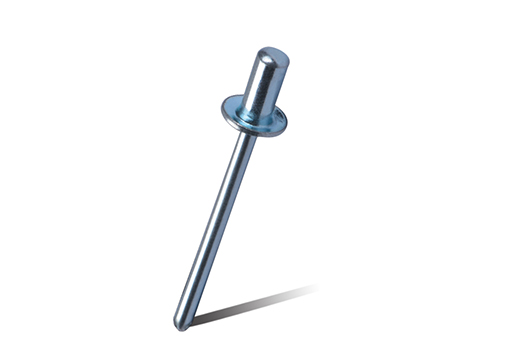

Closed End Type Series

Steady Industrial Fasteners Co., Ltd.

Steady Industrial Fasteners Co., Ltd. is and , specialized in producing Blind Fasteners, including Rivet Nuts, Rivets, Clinching Fasteners and Welding Studs. With more than 10 years experience in production and exporting, STEADY is a High & New technology enterprise founded in 2001.

Wtih ISO 9001:2009, TS16949 certified facilities in Zhejiang, China. We can manufacture 1.5 billion blind rivets that meet DIN7337, IFI and GB(chinese) standards annually, Plus 283 million pieces rivet nuts 120 million pieces of clinching fasteners annually, that most competitors can not simply compete.

Honor

a professional manufacturer of blind fasteners.

STEADY manufactures over thousands different type of blind rivet nuts in steel,aluminium and stainless steel, diameter from M3-M16 in metric and UNC #6-32 to UNC 1/2-13 in inch. High advantage in stainless steel blind rivets both for open and sealed type, mutigrip,monobolt and other structural rivets. We focus on "one stop shopping" and with advantage of large production capacity , consistent quality, competitive prices, punctual delivery and excellent serverices before and after sales, STEADY has become one of the leading blind fasteners manufacuture & supplier in Asia.

Latest news

Industry knowledge

What is Closed End Blind Rivet?

A closed-end blind rivet, also known as a sealed blind rivet or sealed pop rivet, is a type of fastener used to join two materials together. It is designed to provide a strong and secure connection without the need for access to the backside of the workpiece.
The closed-end blind rivet consists of a cylindrical body with a mandrel through its center. The mandrel has a bulbed end that expands the rivet when it is pulled. The opposite end of the rivet is sealed, hence the name "closed-end."
To install a closed-end blind rivet, a rivet gun or riveting tool is used. The rivet is inserted into a pre-drilled hole in the materials to be joined. When the mandrel is pulled, the bulbed end expands and fills the cavity of the rivet body, creating a tight, secure connection. The excess mandrel is then snapped off or discarded.
Closed-end blind rivets are commonly used in applications where a watertight or airtight seal is required, as the sealed end prevents the passage of fluids or gases through the rivet. They are frequently utilized in automotive, aerospace, construction, and appliance industries, as well as in electrical enclosures and HVAC systems.
The advantages of closed-end blind rivets include their ease of installation, high strength, and resistance to vibration and tampering. They provide a cost-effective and efficient solution for joining materials when access to the rear side is limited or impossible.

Why Choose Closed End Blind Rivet?

There are several reasons why you might choose closed-end blind rivets for your application:
Sealed Connection: Closed-end blind rivets provide a sealed connection, making them ideal for applications where a watertight or airtight seal is required. The sealed end prevents the passage of fluids or gases through the rivet, ensuring the integrity of the joint.
Limited Access: Closed-end blind rivets are specifically designed for situations where access to the backside of the workpiece is limited or impossible. Since they can be installed from one side only, they are suitable for joining materials that cannot be easily accessed from both sides.
Strength and Reliability: Closed-end blind rivets offer excellent strength and reliability. When properly installed, they provide a strong and secure connection, capable of withstanding high loads and vibrations. This makes them suitable for demanding applications where structural integrity is crucial.
Ease of Installation: Installing closed-end blind rivets is relatively simple and requires minimal tools. With a rivet gun or riveting tool, you can quickly and efficiently install the rivets. The installation process is straightforward and does not require specialized skills or extensive training.
Tamper Resistance: The closed-end design of these rivets makes them resistant to tampering. Once installed, the sealed end provides an additional layer of security, making it difficult for unauthorized individuals to disassemble or manipulate the connection.
Cost-effective Solution: Closed-end blind rivets offer a cost-effective solution for joining materials. They are generally less expensive than alternative fastening methods, such as welding or bolting, and can be installed more efficiently, reducing labor costs.
Versatility: Closed-end blind rivets are widely used in various industries and applications. Whether you're working with metal, plastic, or composite materials, closed-end blind rivets can effectively join them together. They are commonly used in automotive, aerospace, construction, and appliance industries, among others.
When considering closed-end blind rivets, it's important to assess your specific application requirements, such as load capacity, environmental conditions, and material compatibility. This will help you determine if closed-end blind rivets are the appropriate choice for your project.
