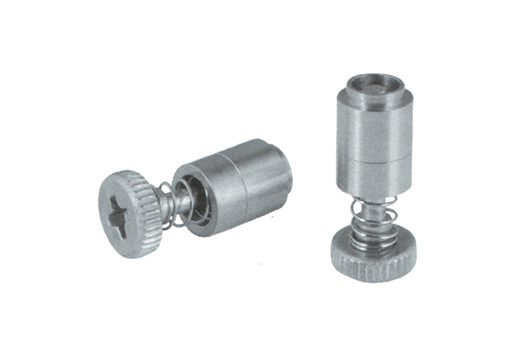

MSF

Finish	Codeft
Zinc Blue	ZU
Zinc Black	ZB
Zinc Yellow	ZC
Zinc Clear	ZI
Black Anodize	BL
Natural Anodize	NA
Gold Anodize	GD
Copper Red	RU
Copper Yellow	YU
Nickel Over Copper	CN
Tin Matt	DT
Flash Black Painting coating	PC
Sn/Pb plating	TP
Sandblast and Anodize	SA
Nickel Flash	NI
Nickel Electroless	EN
Chrome Flash	CR
Tin Flash	ET
Passivation	PS
Gold Plating	AU
Silver plating	AG
Titanium plating	TI
Cadmium plating	CD
Zinc-Iron Alloy	ZF
Chromate	CH
Plain	X
Electro painting	EF

DETAILS

APPLIACTION

Material and Finish

Screw: 300 Series Stainless Steel, Passivated

Retainer: 300 Series Stainless Steel, Passivated or Anodize

Screw: 300 Series Stainless Steel, Passivated

All dimensions are in millimeters (Size Unit: mm)

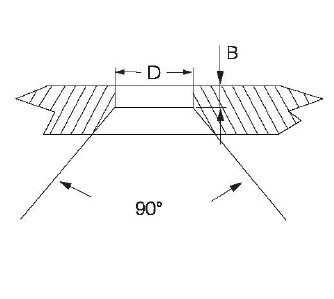

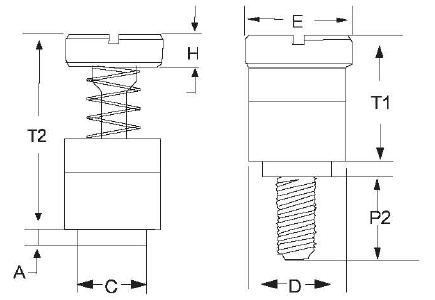

Thread Size	Part Number	Sheet Thickness		Hole Size In Sheet ±0.05	A	B	C	D	E	Driver Slet WXP	H	T1	T2	P2
Thread Size	Part Number	Min.	Max.	Hole Size In Sheet ±0.05	A	B	C	D	E	Driver Slet WXP	H	T1	T2	P2
M3	52-10-601-24	0.8	2.3	4.8	1	0.4	4.6	6	7	0.9 x 0.9	3.97	11.2	15.8	4.6
440	52-10-301-24	0.8	2.4	4.8	1	0.4	4.6	6	7	0.9 x 0.9	3.97	11.2	15.8	4.6
632	52-50-402-24	1.5	3.2	5.4	1.8	0.4	5.3	7	8	1.1 x 1.1	4.75	11.9	17.3	5.3
