FH4

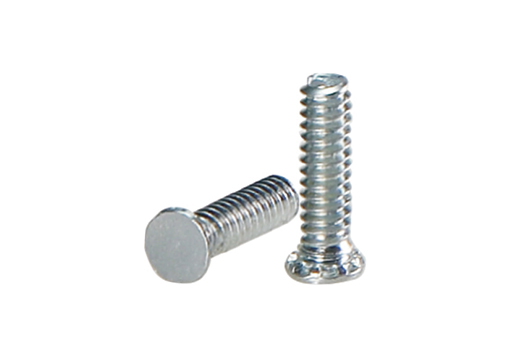

FH4

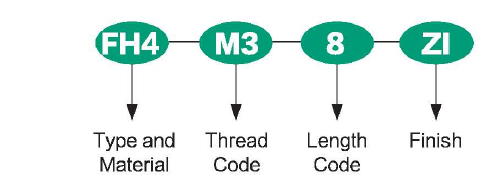

Finish Codeft
Zinc Blue ZU
Zinc Black ZB
Zinc Yellow ZC
Zinc Clear ZI
Black Anodize BL
Natural Anodize NA
Gold Anodize GD
Copper Red RU
Copper Yellow YU
Nickel Over Copper CN
Tin Matt DT
Flash Black Painting coating PC
Sn/Pb plating TP
Sandblast and Anodize SA
Nickel Flash NI
Nickel Electroless EN
Chrome Flash CR
Tin Flash ET
Passivation PS
Gold Plating AU
Silver plating AG
Titanium plating TI
Cadmium plating CD
Zinc-Iron Alloy ZF
Chromate CH
Plain X
Electro painting EF
Contact Us Inquiry DownLoad
DETAILS
APPLIACTION

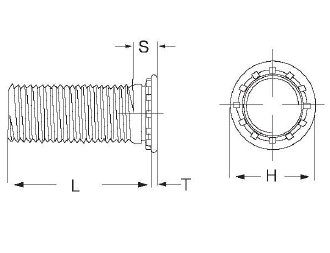

All dimensions are in inches (Size Unit: inch)

Thread Size

Type

Thread Code

Length "L"±.015
( Length Code is in 16ths of an inch )

Min.Sheet Thickness

Hole Size in Sheet +.003

Max. Hole in Attach Parts

H
±.015

S
Max.

Min.Dist Hole C/L To Edge

400 Stainless Steel

.250

.312

.375

.500

.625

750

.875

1.00

1.25

1.50

.112-40(#4-40)

FH4

440

4

5

6

8

10

12

14

16

/

/

.040-.095

.111

.135

.176

.085

.219

.138-32(#6-32)

FH4

632

4

5

6

8

10

12

14

16

20

24

.040-.095

.137

.160

.206

.090

.250

.164-32(#8-32)

FH4

832

4

5

6

8

10

12

14

16

20

24

.040-.095

.163

.185

.237

.090

.281

.190-32(#10-32)

FH4

032

/

5

6

8

10

12

14

16

20

24

.040-.095

.189

.210

.256

.100

.281
All dimensions are in millimeters (Size Unit: mm)

Thread Size

Type

Thread Code

Length Code "L"±0.4
( Length Code is in millimeters )

Min.Sheet Thickness

Hole Size in Sheet +0.08

Max. Hole in Attach Parts

H
±0.4

S
Max.

Min.Dist Hole C/L To Edge

400 Stainless Steel

.250

.312

.375

.500

.625

750

.875

1.00

1.25

1.50

M3X0.5

FH4

M3

6

8

10

12

15

18

20

25

/

/

1-2.4

3.0

3.6

4.6

2.1

5.6

M4X0.7

FH4

M4

6

8

10

12

15

18

20

25

30

35

1-2.4

4.0

4.6

5.9

2.4

7.2

M5X0.8

FH4

M5

/

8

10

12

15

18

20

25

30

35

1-2.4

5.0

5.6

6.5

2.7

7.2
