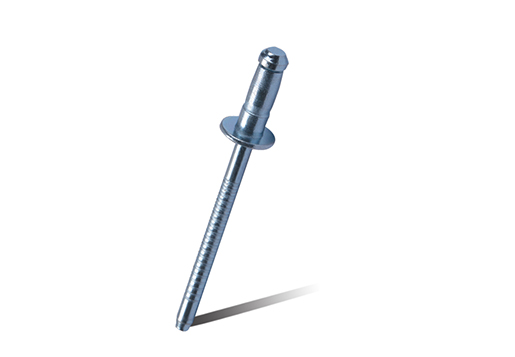

All Steel Unigrip Type Blind Rivets

All Steel Unigrip Type Blind Rivets

MATERIAL

Body:Carbon Steel

Mandrel: Carbon Steel

FINISH

Body:Zinc Plated

Mandrel:Zinc Plated



Contact Us

Details

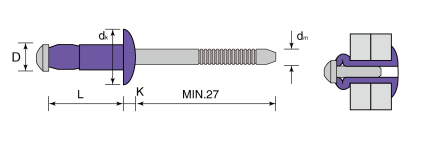

ssng



D



L



dk

k

dm







 RIVET SIZE

PART NUMBER

RIVET LENGTH

GRIP RANGE

HEAD  DIA

HEAD  HEIGHT

MANDREL  DIA

HOLE SIZE (DRILL)

Shear   (N)

Tensile  (N)



[+1/-0]

MIN-MAX



MAX.

MAX.

Ф

MIN.

MIN.

3.2    (1/8")

SSNG32065

6.5

1.0-3.0

6.7

1.3

2.20

3.3-3.4

1200

1200

SSNG32095

9.5

3.0-5.0

1700

SSNG32115

11.5

5.0-7.0

2500

4.0   (5/32")

SSNG40075

7.5

1.0-3.0

8.4

1.7

2.8

4.1-4.3

2400

2000

SSNG40010

10.0

3.0-5.0

3500

SSNG40125

12.5

5.0-7.0

4100

4.8  (3/16")

SSNG48100

10.0

1.5-3.5

10.1

2.0

3.2

4.9-5.1

3600

2900

SSNG48125

12.5

3.5-6.0

4200

SSNG48145

14.5

6.0-8.5

5600

SSNG48165

16.5

7.5-10.0

5600

6.0  (15/64")

SSNG60110

11.0

1.5-4.0

12.6

2.5

4.0

6.1-6.3

4200

4000

SSNG60130

13.0

3.0-6.0

5400

SSNG60160

16.0

6.0-9.0

8500

SSNG60190

19.0

9.0-12.0

8500

6.4  (1/4")

SSNG64125

12.5

1.5-4.5

13.4

2.7

4.2

6.5-6.7

10000

5400

SSNG64145

14.5

3.0-6.5

11000

SSNG64165

16.5

5.0-8.5

11000

SSNG64195

19.5

8.0-11.5

11000
