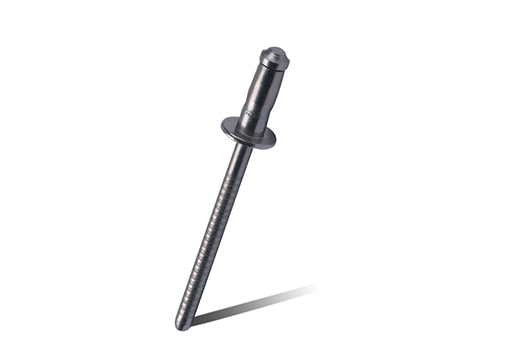

All Stainless Steel Unigrip Type Blind Rivets

All Stainless Steel Unigrip Type Blind Rivets

MATERIAL

Body:Stainless Steel

Mandrel: Stainless Steel

FINISH

Body:Polished

Mandrel:Polished

Contact Us

Details

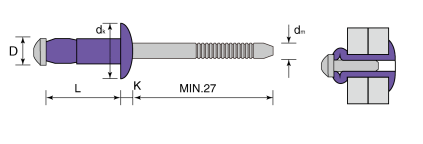

bbng



D



L



dk

k

dm







RIVET SIZE

PART NUMBER

RIVET LENGTH

GRIP RANGE

HEAD  DIA

HEAD  HEIGHT

MANDREL  DIA

HOLE SIZE (DRILL)

Shear   (N)

Tensile  (N)



[+1/-0]

MIN-MAX



MAX.

MAX.

Ф

MIN.

MIN.

3.2    (1/8")

BBNG32065

6.5

1.0-3.0

6.7

1.3

2.20

3.3-3.4

1600

2000

BBNG32095

9.5

3.0-5.0

1700

BBNG32115

11.5

5.0-7.0

3200

4.0   (5/32")

BBNG40075

7.5

1.0-3.0

8.4

1.7

2.8

4.1-4.3

4000

3500

BBNG40010

10.0

3.0-5.0

5200

BBNG40125

12.5

5.0-7.0

5200

4.8  (3/16")

BBNG48100

10.0

1.5-3.5

10.1

2.0

3.4

4.9-5.1

5500

4500

BBNG48125

12.5

3.5-6.0

5500

BBNG48145

14.5

6.0-8.5

5500

BBNG48165

16.5

7.5-10.0

5500

6.0  (15/64")

BBNG60110

11.0

1.5-4.0

12.6

2.5

4.2

6.1-6.3

7800

6200

BBNG60130

13.0

3.0-6.0

9500

BBNG60160

16.0

6.0-9.0

9500

BBNG60190

19.0

9.0-12.0

9500

6.4  (1/4")

BBNG64125

12.5

1.5-4.5

13.4

2.7

4.8

6.5-6.7

10500

8300

BBNG64145

14.5

3.0-6.5

13700

BBNG64165

16.5

5.0-8.5

13700

BBNG64195

19.5

8.0-11.5

13700
