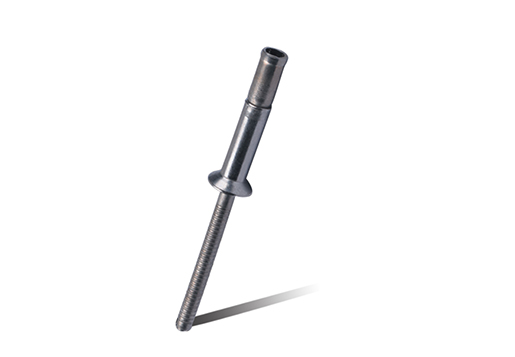

STAINLESS STEEL BODY AND STAINLESS STEEL MANDREL(MONO-LOCK CSK HEAD)

MATERIAL

Body: 304 Series Stainless Steel

Mandrel: 302 Series Stainless Steel

FINISH

Body:Natural

Mandrel:Natural

DETAILS

APPLIACTION

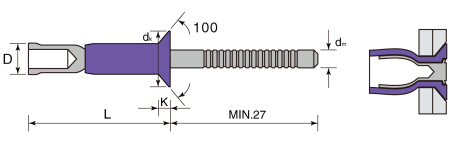

D		L		dk	k	dm
RIVET SIZE	PART NUMBER	RIVET LENGTH	GRIP RANGE	HEAD DIA	HEAD HEIGHT	MANDREL DIA	HOLE SIZE (DRILL)	Shear (KN)	Tensile (KN)
	PART NUMBER	RIVET LENGTH	GRIP RANGE	HEAD DIA	HEAD HEIGHT	MANDREL DIA	HOLE SIZE (DRILL)	Shear (KN)	Tensile (KN)
		MAX.	MIN-MAX		MAX.	MAX.	Ф	MIN.	MIN.
4.8 (3/16")	BBMC-0606	20.0	3.17-8.41	8.5	2.2	3.1	4.9-5.1	5.8	4.1
4.8 (3/16")	BBMC-0608	26.2	3.17-12.22	8.5	2.2	3.1	4.9-5.1	5.8	4.1
6.4 (1/4")	BBMC-0808	26.4	3.17-12.07	10.1	2.4	4.1	6.7-7.0	10.5	8.2

Steady-Ind

Steady-Ind - Pursue quality and cast high-quality goods.

STEADY manufactures over a thousands different types of blind rivet nut in steel,aluminium and stainless steel,thread size from M3-M16 in metric and UNC #6-32 to UNC 1/2-13 in inch. High advantage in stainless steel blind rivets both for open and sealed type, mutigrip,monobolt and other structural rivets. We focus on "one stop shopping" and with advantage of large production capacity , consistent quality, competitive prices, punctual delivery and goods serverices before and after sales, STEADY has become one of the leading blind fasteners manufacuture & supplier in Asia.

About Us Steady-Ind

Honor

a professional manufacturer of blind fasteners.

STEADY manufactures over thousands different type of blind rivet nuts in steel,aluminium and stainless steel, diameter from M3-M16 in metric and UNC #6-32 to UNC 1/2-13 in inch. High advantage in stainless steel blind rivets both for open and sealed type, mutigrip,monobolt and other structural rivets. We focus on "one stop shopping" and with advantage of large production capacity , consistent quality, competitive prices, punctual delivery and excellent serverices before and after sales, STEADY has become one of the leading blind fasteners manufacuture & supplier in Asia.
