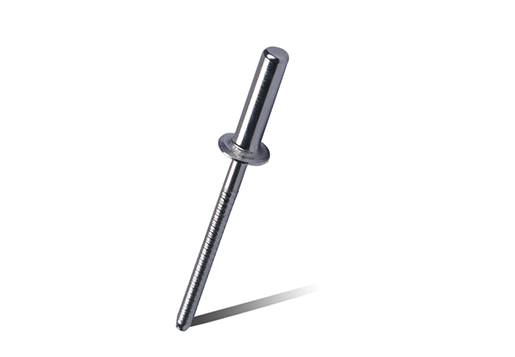

All Stainless Steel Sealed Type Blind Rivets

All Stainless Steel Sealed Type Blind Rivets

MATERIAL

Body:304 stainless steel

Mandrel:420 stainless steel

FINISH

Body:Polished

Mandrel:Polished

Contact Us

Details

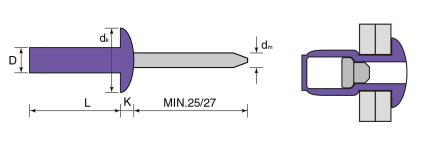

bbf



D



L



dk

k

dm







RIVET SIZE

PART NUMBER

RIVET LENGTH

GRIP RANGE

HEAD  DIA

HEAD  HEIGHT

MANDREL  DIA

HOLE SIZE (DRILL)

Shear   (N)

Tensile  (N)



[+1/-0]

MIN-MAX



MAX.

MAX.

Ф

MIN.

MIN.

3.2    +0.08      -0.15

BBF-S320060

6.0

0.5-1.5

5.8-6.7

1.3

2.15

3.3-3.4

2000

2200

BBF-S320080

8.0

1.5-3.0

BBF-S320095

9.5

3.0-4.5

BBF-S320120

12.0

5.0-6.5

BBF-S320140

14.0

6.5-8.0

4.0   +0.08      -0.15

BBF-S400060

6.0

0.5-1.5

6.9-8.4

1.7

2.75

4.1-4.2

3000

3500

BBF-S400080

8.0

1.5-3.0

BBF-S400095

9.5

3.0-5.0

BBF-S400120

12.0

5.0-6.5

BBF-S400140

14.0

6.5-8.0

BBF-S400160

16.0

8.0-11.0

4.8   +0.08      -0.15

BBF-S480080

8.0

0.5-3.0

8.3-10.1

2.0

3.2

4.9-5.0

4000

4400

BBF-S480095

9.5

3.0-5.0

BBF-S480120

12.0

5.0-6.5

BBF-S480140

14.0

5.0-7.5

BBF-S480160

16.0

6.5-9.0

BBF-S480180

18.0

8.0-10.5

BBF-S480200

20.0

9.0-12.0

6.4   +0.08      -0.15

BBF-S640120

12.0

1.5-6.5

11.6-13.4

2.7

3.9

6.5-6.6

6000

8000

BBF-S640160

16.0

6.5-8.0

BBF-S640180

18.0

8.0-10.0

BBF-S640200

20.0

8.0-12.0

BBF-S640250

25.0

12.0-17.0
