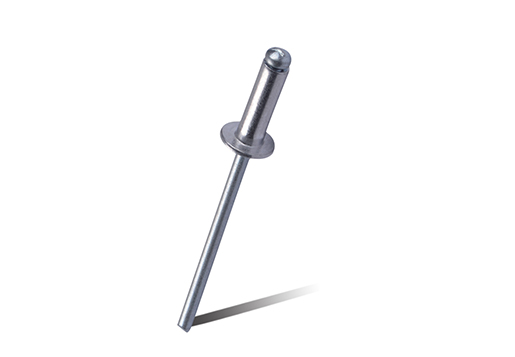

ALUMINUM/STEEL DOME HEAD BLIND RIVETS

MATERIAL

Body:5050Alu.5052Alu.5154Alu.5056Alu

Mandrel:Steel

FINISH

Body:Polished

Mandrel:Zinc Plated

DETAILS

APPLIACTION

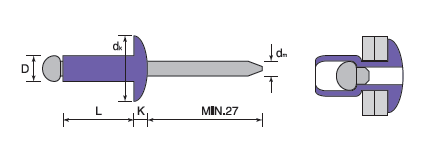

D		L		dk	k	dm
RIVET SIZE	PART NUMBER	RIVET LENGTH	GRIP RANGE	HEAD DIA	HEAD HEIGHT	MANDREL DIA	HOLE SIZE (DRILL)	Shear (N)	Tensile (N)
	PART NUMBER	RIVET LENGTH	GRIP RANGE	HEAD DIA	HEAD HEIGHT	MANDREL DIA	HOLE SIZE (DRILL)	Shear (N)	Tensile (N)
		[+1/-0]	MIN-MAX		MAX.	MAX.	Ф	MIN.	MIN.
2.4 +0.08 -0.15	AS2404	4.0	0.5-2.0	4.2-5.0	1.0	1.6	2.5-2.6	5050Alu. 180N 5052Alu. 250N 5154Alu. 350N 5056Alu. 450N	5050Alu. 280N 5052Alu. 350N 5154Alu. 500N 5056Alu. 600N
	AS2406	6.0	2.0-4.0
	AS2408	8.0	4.0-6.0
	AS2410	10.0	6.0-8.0
	AS2412	12.0	7.0-9.5
	AS2414	14.0	8.0-11.5
	AS2416	16.0	10.0-13.0
3.0 +0.08 -0.15	AS3006	6.0	1.0-3.5	5.4-6.3	1.3	2.00	3.1-3.2	5050Alu 300N 5052Alu 400N 5154Alu 550N 5056Alu 750N	5050Alu 400N 5052Alu 550N 5154Alu 700N 5056Alu 900N
	AS3008	8.0	3.5-5.0
	AS3010	10.0	5.0-7.0
	AS3012	12.0	7.0-9.0
	AS3014	14.0	9.0-11.0
	AS3016	16.0	9.0-12.5
	AS3018	18.0	12.0-14.5
	AS3020	20.0	13.0-16.5
3.2 +0.08 -0.15	AS3206	6.0	1.0-3.5	5.8-6.7	1.3	2.00	3.3-3.4	5050Alu 400N 5052Alu 500N 5154Alu 750N 5056Alu 850N	5050Alu 500N 5052Alu 700N 5154Alu 1000N 5056Alu 1100N
	AS3208	8.0	3.5-5.0
	AS3210	10.0	5.0-7.0
	AS3212	12.0	7.0-9.0
	AS3214	14.0	9.0-11.0
	AS3216	16.0	9.0-12.5
	AS3218	18.0	12.0-14.5
	AS3220	20.0	13.0-16.5
	AS3225	25.0	15.0-21.0
4.0 +0.08 -0.15	AS4006	6.0	1.0-3.0	6.9-8.4	1.7	2.50	4.1-4.2	5050Alu 800N 5052Alu 850N 5154Alu 1100N 5056Alu 1400N	5050Alu 1000N 5052Alu 1200N 5154Alu 1700N 5056Alu 2000N
	AS4008	8.0	3.0-5.0
	AS4010	10.0	4.0-6.5
	AS4012	12.0	6.0-8.5
	AS4014	14.0	7.0-10.5
	AS4016	16.0	8.0-12.5
	AS4018	18.0	10.0-14.5
	AS4020	20.0	12.0-16.0
	AS4025	25.0	16.0-21.0
	AS4030	30.0	21.0-26.0
	AS4035	35.0	26.0-30.5
	AS4040	40.0	30.5-35.0
4.8 +0.08 -0.15	AS4806	6.0	1.0-2.5	8.3-10.1	2.0	3.0	4.9-5.0	5050Alu 1300N 5052Alu 1500N 5154Alu 1700N 5056Alu 2000N	5050Alu 1500N 5052Alu 1800N 5154Alu 2500N 5056Alu 3000N
	AS4808	8.0	2.5-4.0
	AS4810	10.0	4.0-6.0
	AS4812	12.0	6.0-8.0
	AS4814	14.0	8.0-10.0
	AS4816	16.0	8.0-12.0
	AS4818	18.0	10.0-14.0
	AS4820	20.0	12.0-16.0
	AS4825	25.0	16.0-21.0
	AS4830	30.0	21.0-25.0
	AS4835	35.0	25.0-30.0
	AS4840	40.0	30.0-35.0
	AS4845	45.0	35.0-40.0
	AS4850	50.0	40.0-45.0
6.4 +0.08 -0.15	AS6408	8.0	1.5-3.0	11.6-13.4	2.7	3.90	6.5-6.6	5050Alu 2200N 5052Alu 2700N 5154Alu 3400N 5056Alu 3800N	5050Alu 3000N 5052Alu 3400N 5154Alu 4850N 5056Alu 5200N
	AS6410	10.0	2.0-4.0
	AS6412	12.0	3.0-6.0
	AS6414	14.0	6.0-8.0
	AS6416	16.0	6.0-10.0
	AS6418	18.0	8.0-12.0
	AS6420	20.0	10.0-14.0
	AS6425	25.0	14.0-18.0
	AS6430	30.0	18.0-23.0
	AS6435	35.0	23.0-28.0
	AS6440	40.0	28.0-33.0
