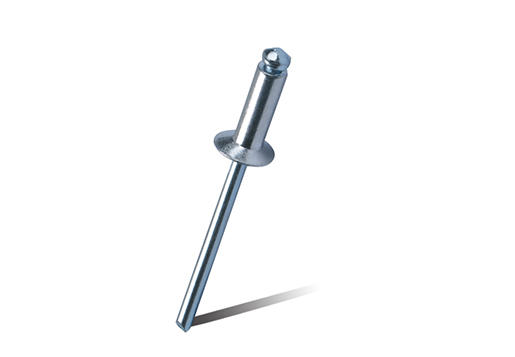

ALUMINUM/STEEL CSK HEAD BLIND RIVETS

MATERIAL

Body:5050Alu.5052Alu.5154Alu.5056Alu

Mandrel:Steel

FINISH

Body:Polished

Mandrel:Zinc Plated

DETAILS

APPLIACTION

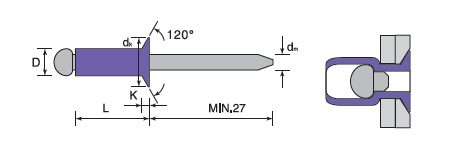

D		L		dk	k	dm
RIVET SIZE	PART NUMBER	RIVET LENGTH	GRIP RANGE	HEAD DIA	HEAD HEIGHT	MANDREL DIA	HOLE SIZE (DRILL)	Shear (N)	Tensile (N)
	PART NUMBER	RIVET LENGTH	GRIP RANGE	HEAD DIA	HEAD HEIGHT	MANDREL DIA	HOLE SIZE (DRILL)	Shear (N)	Tensile (N)
		[+1/-0]	MIN-MAX		MAX.	MAX.	Ф	MIN.	MIN.
2.4 +0.08 -0.15	ASC2404	4.0	0.5-2.0	4.2-4.8	1.0	1.6	2.5-2.6	5050Alu. 180N 5052Alu. 250N 5154Alu. 350N 5056Alu. 450N	5050Alu. 280N 5052Alu. 350N 5154Alu. 500N 5056Alu. 600N
	ASC2406	6.0	2.0-4.0
	ASC2408	8.0	4.0-6.0
	ASC2410	10.0	6.0-8.0
	ASC2412	12.0	7.0-9.5
	ASC2414	14.0	8.0-11.5
	ASC2416	16.0	10.0-13.0
3.0 +0.08 -0.15	ASC3006	6.0	1.0-3.5	5.2-6.3	1.3	2.00	3.1-3.2	5050Alu 300N 5052Alu 400N 5154Alu 550N 5056Alu 750N	5050Alu 400N 5052Alu 550N 5154Alu 700N 5056Alu 900N
	ASC3008	8.0	3.5-5.0
	ASC3010	10.0	5.0-7.0
	ASC3012	12.0	7.0-9.0
	ASC3014	14.0	9.0-11.0
	ASC3016	16.0	9.0-12.5
	ASC3018	18.0	12.0-14.5
	ASC3020	20.0	13.0-16.5
3.2 +0.08 -0.15	ASC3206	6.0	1.0-3.5	5.4-6.3	1.3	2.00	3.3-3.4	5050Alu 400N 5052Alu 500N 5154Alu 750N 5056Alu 850N	5050Alu 500N 5052Alu 700N 5154Alu 1000N 5056Alu 1100N
	ASC3208	8.0	3.5-5.0
	ASC3210	10.0	5.0-7.0
	ASC3212	12.0	7.0-9.0
	ASC3214	14.0	9.0-11.0
	ASC3216	16.0	9.0-12.5
	ASC3218	18.0	12.0-14.5
	ASC3220	20.0	13.0-16.5
	ASC3225	25.0	15.0-21.0
4.0 +0.08 -0.15	ASC4006	6.0	1.0-3.0	6.9-7.5	1.7	2.50	4.1-4.2	5050Alu 800N 5052Alu 850N 5154Alu 1100N 5056Alu 1400N	5050Alu 1000N 5052Alu 1200N 5154Alu 1700N 5056Alu 2000N
	ASC4008	8.0	3.0-5.0
	ASC4010	10.0	4.0-6.5
	ASC4012	12.0	6.0-8.5
	ASC4014	14.0	7.0-10.5
	ASC4016	16.0	8.0-12.5
	ASC4018	18.0	10.0-14.5
	ASC4020	20.0	12.0-16.0
	ASC4025	25.0	16.0-21.0
	ASC4030	30.0	21.0-26.0
	ASC4035	35.0	26.0-30.5
	ASC4040	40.0	30.5-35.0
4.8 +0.08 -0.15	ASC4806	6.0	1.0-2.5	8.3-9.5	2.0	3.0	4.9-5.0	5050Alu 1300N 5052Alu 1500N 5154Alu 1700N 5056Alu 2000N	5050Alu 1500N 5052Alu 1800N 5154Alu 2500N 5056Alu 3000N
	ASC4808	8.0	2.5-4.0
	ASC4810	10.0	4.0-6.0
	ASC4812	12.0	6.0-8.0
	ASC4814	14.0	8.0-10.0
	ASC4816	16.0	8.0-12.0
	ASC4818	18.0	10.0-14.0
	ASC4820	20.0	12.0-16.0
	ASC4825	25.0	16.0-21.0
	ASC4830	30.0	21.0-25.0
	ASC4835	35.0	25.0-30.0
	ASC4840	40.0	30.0-35.0
	ASC4845	45.0	35.0-40.0
	ASC4850	50.0	40.0-45.0
