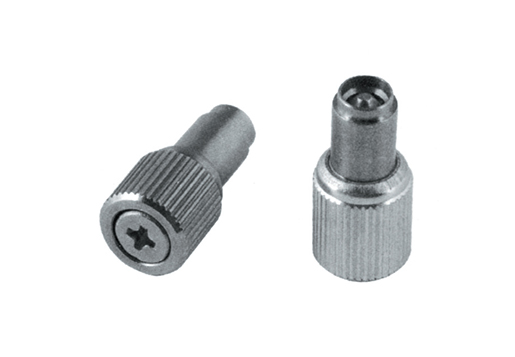

PF

PF

PF09 Knob: Aluminum

PF10 Knob: 300 Serier Stainless Steel

Ferrule: 300 Serier Stainless Steel

Screw: 300 Serier Stainless Steel

Spring: 300 Serier Stainless Steel

Contact Us Inquiry DownLoad
DETAILS
APPLIACTION

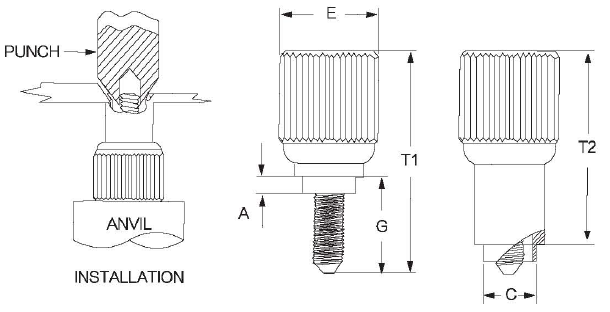

All dimensions are in millimeters (Size Unit: mm)

Thread Size

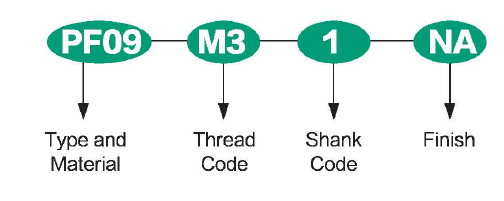

Type

Thread Code

Shank Code

A
±0.1

Sheet Thickness

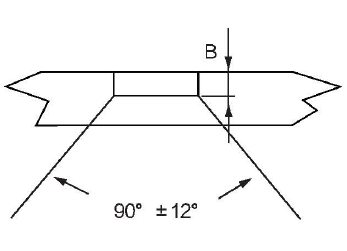

Hole Size In Sheet +0.08

C Max.

B±0.1

G±0.4

T1±0.2

T2
Nom

E±0.25

Driver Size

Aluminum

Stainless Steel

Philips +

Slots
-

M2.5X0.45

PF09

PF10

M2.5

0

1.0

1.0

4

3.98

0.4

5.0

14.5

13.4

7

#1

0.8

1

1.5

1.5

4

3.98

0.4

6.0

15.5

2

2.5

2.5

4

3.98

0.8

7.0

16.5

M3X0.5

PF09

/

M3A

0

1.0

1.0

4.5

4.48

0.4

5.5

14.4

13.4

7.5

#2

/

1

2.0

2.0

4.5

4.48

0.4

6.9

15.8

M3X0.5

PF09

PF10

M3

0

1.0

1.0

4.5

4.48

0.4

5.3

14.8

13.4

8.0

#1

0.8

1

1.5

1.5

4.5

4.48

0.4

6.3

15.8

2

2.5

2.5

4.5

4.48

0.8

7.3

16.8

M4X0.7

PF09

PF10

M5

0

1.5

1.5

5.5

5.4

0.8

8.5

18.3

13.5

10

#2

1.0
